Electronics Automation System in Bangladesh

Description

brief information

Product Origin:: China

Name:: ACM

Models:: AC-03

The product's name:: Metal fried

Working voltage:: DC12V ± 10%

Software:: No

Model number::: Access Control System

Keywords:: RFID Push Button Controller / Electric Magnetic Lock / Access Control System

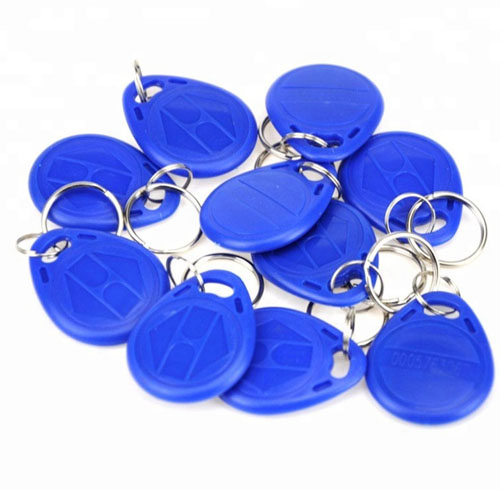

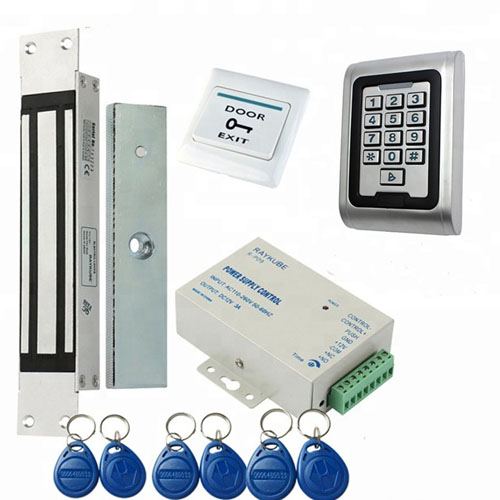

Accessories:: Access control system / rfid key rings / exit button

Application:: For access control

Frequency:: 125 kHz / 13.56 MHz

Product Description:

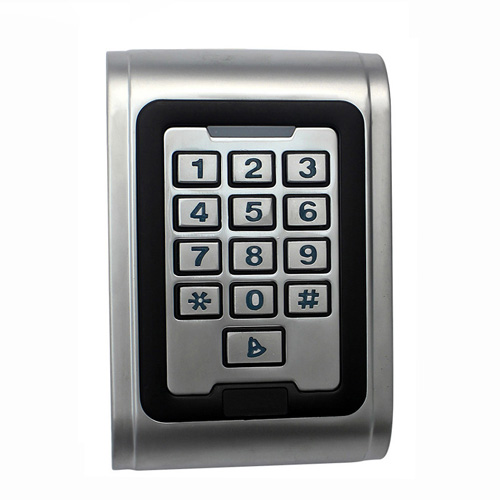

1. ACM208B access control

Product Features:

Wired connections: electric lock, exit button
Operating voltage: DC 12V
No-load current: 50mA
Card Type: ID Card
Frequency: 125 kHz
Reading distance: 1-8 cm
Operating Temperature: -20c ~ 70c
Size: 120X83X25mm

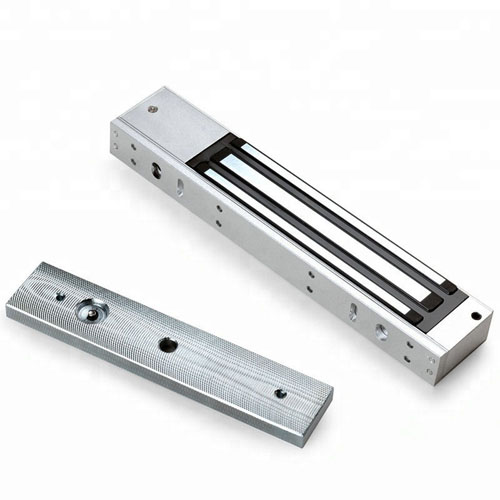

2.180 kg / 280 kg Electromagnetic magnetic lock ACM-180kg / ACM-280kg

Lock size	170Lx35Wx26H (mm)
Limiting force	180 kg (350Lbs)
Double voltage	12 / 24VDC + 10%
Currently	12 V / 300mA 24 V / 150mA
Suitable for	Case for documents, Displ A Y case
Surface temperature	≤ + 20 ° C
Working temperature	10 ~ + 55 ° C (14-131F)
Suitable for	Wooden doors, glass doors, metal doors, fireproof doors
Suitable humidity	0 ~ 90% (non-condensing)
Weight	1.2 kg

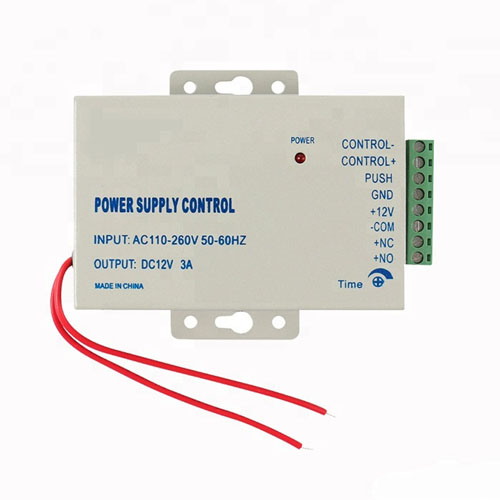

3. Power supply 12 V 3A

1. The width of the voltage range everything can be regularly commissioned from 100 V-260 V

2. one after another the national energy consumption of world voltage, the weight of the lamp, the transportation is convenient, the interference is small, the property of the characteristics of the output voltage rigidly reduces the carrier roller to full load with voltage fluctuation only when +/- temperature, which is 1%

3. Lock to increase electricity (compared to the source of the operating frequency) significantly.

4. Exchange import: Standard AC100V-260V 50-60hz.direct current outputs: Stabilivolt DC12V / 3 A.

4. Directly controlled by electricity is blocked: in the case, when the time runs out, the shutdown time can reach 0-15, the second is arbitrarily regulated.

5. Protection Automation Function: Consider that the power supply exports automatic protection without voltage when a short circuit occurred in the circuit.

6. The outer iron case measuring 103 mm X 68 mm X 33 mm

4. Output sensor switch ACM-K1

5. ACM-180 / 280zl-type magnetic lock

Data sheet:

1) Bracket ZL-Inner door (280 kg)

2) Standard structure: aluminum panel with durable style

3) Suitable for: wooden door. Steel door

4) Opening mode: in opening
